Digital Readout Communications Receiver Realistic DX-302 Continuous Coverage from 10kHz to 30MHz   with Owners Manual - Catalog Number 20-220 Super-Accurate Quartz-Locked Tuning Wide/Narrow IF Selectivity Switch Dual MOS Field-effect transistor in the critical mixer stage (freedom from cross-modulation and undesirable RF distortion) 3-Way Power: AC, 12VDC, or Internal Batteries. Built-In Code Practice Oscillator Soft white LED back lighted Signal Strength Meter Operates on AC, 12VDC or internal batteries and a 5-digit LED readout lets you tune directly to stations – no calibration is required! A tunable 6 band preselector, with LED band indicators and blue LED lighted dial, assures peak sensitivity. To help separate closely-spaced signals, the “302” has six (6) and nine (9) element ceramic filters, controlled by the wide/narrow IF selectivity switch. RF gain control and a 3 step RF attenuator prevent strong signal overloading. Function switch selects lower sideband, upper sideband, standby, AM, and AM-ANL (automatic noise limiter) modes. Variable-pitch BFO for easy CW and SSB tuning. Up front speaker and headphone jack. Rear panel jacks let you connect an external speaker, a code key, tape recorder or amplifier. For portable operation there is even a convenient recessed handle and a dial light switch to conserve batteries. 6x14.5x10”. U.L. listed. RECEIVING SYSTEM: Quartz Controlled Synthesizer, triple conversion FREQUENCY COVERAGE: 10 kHz -30 MHz PRESELECTOR BANDS: 0.01 - 0.15 MHz (10-150 kHz) 0.15 - 0.5 MHz (150-500 kHz) 0.5 - 1.6 MHz 1.6 - 4.5 MHz 4.5 - 12 MHz 12 - 30 MHz FREQUENCY DISPLAY: Digital read-out in five 7-segment LEDs SENSITIVITY (for 10 dB Signal-to-Noise ratio): AM 50 kHz 30 microV 300 kHz 2 microV 900 kHz 1.0 microV 3.1 MHz 0.5 microV 7.1 MHz 0.5 microV 15.1 MHz 0.5 microV 28.1 MHz 0.5 microV SSB 50 kHz 15 microV 300 kHz 1 microV 900 kHz 0.5 microV 3.1 MHz 0.3 microV 7.1 MHz 0.3 microV 15.1 MHz 0.3 microV 28.1 MHz 0.3 microV IMAGE RATIO: 100 kHz 70 dB 300 kHz 70 dB 900 kHz 70 dB 3.1 MHz 60 dB 7.1 MHz 60 dB 15.1 MHz 60 dB 28.1 MHz 60 dB SELECTIVITY: - 6 dB -60 dB Wide 3.5 kHz 6.0 kHz Narrow 2.5 kHz 4.0 kHz RECEPTION MODE: AM, USB, LSB, CW IF: First 55.5 - 54.5 MHz Second 3 - 2 MHz Third 455 kHz BEAT FREQUENCY: 455 kHz +/- 1.5 kHz BFO PITCH: +/- 1 kHz FREQUENCY STABILITY: Within 1 kHz per hour after 60 minutes warmup Within 2 kHz during 10 minutes after initial turnon ANTENNA IMPEDANCE: 50 ohms for coax connector Hi-Z for long wire AUDIO POWER: 1.5 watts maximum POWER REQUIREMENTS: AC 120 Volts 60 Hz 15 watts DC 12 Volts negative ground or eight "C" cells 8 watts DIMENSIONS: 6" (146 mm) x 14 1/2" (362 mm) x 10" (252 mm) HWD WEIGHT: 13 1/5 lbs (6 kg) Specifications are typical; individual units might vary. Specifications are subject to change without notice.

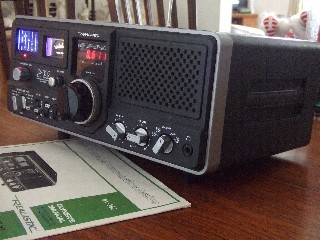

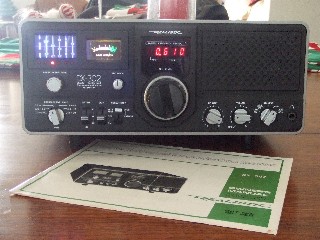

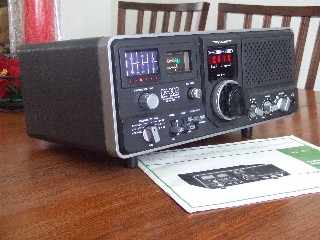

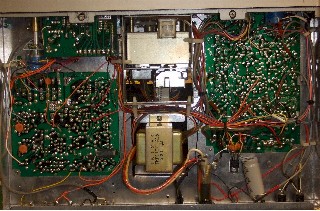

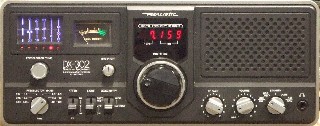

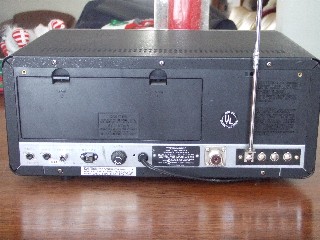

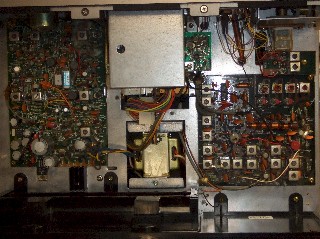

Running though it's abilities 1.1.2013 5:00pm EST  Click on photo's below for a larger copy
