Sony ICF-6800W (Orange)
The Sony ICF-6800W sophisticated worldband receiver covering AM, FM (87.5-180 MHz) and complete shortwave coverage 1.6-30 MHz. The radio has both analog and digital displays. This dual conversion, superheterodyne circuit employs quartz-crystal PLL synthesized tuning and LED display (except FM). Features include: S-Meter, AFC, Bass & Treble, Wide/Narrow Selectivity, Memo Lamp and BFO for Single Side Band and Morse code. Jacks are provided for headphones, earphone, record output and timer input. May be operated from 110/120/220/240 VAC or six D cells. Antenna jacks are available on the rear panel (SO-239 and terminals).
Circuit system
FM/MW - Superheterodyne
SW - Dual conversion superheterodyne, using a crystal-controlled P.L.L. synthesizer
Frequency range
FM: 87.5-108 MHz
SW: 1.6-30 MHz (187.5-10 m)
MW: 530-1,605 kHz (566-187 m)

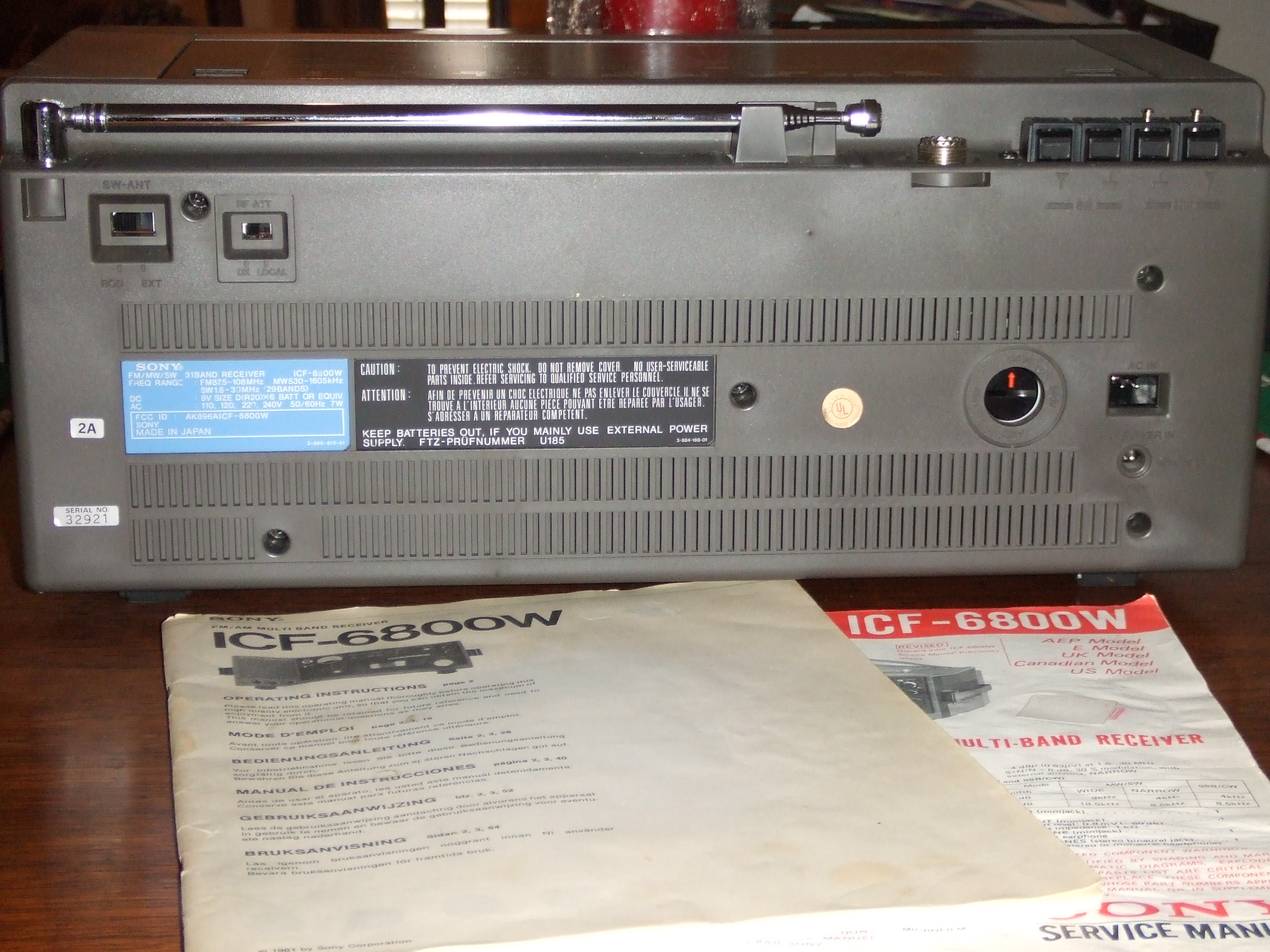

Antennas
FM: Telescopic antenna
SW: Telescopic antenna; External antenna terminals (50-75 ohms); UHF-type connector (50-75 ohms)
MW: Built-in ferrite bar antenna External antenna terminals (low impedance)
Speaker: Approx. 10 cm (4 inches) dia
Power output: 900 mW (at 10% harmonic distortion) at dc operation
Input: Timer input jack (minijack)
Outputs
Recording output jack (minijack)
Output level 0.8 mV (-60 dB)
Output impedance 1 kilohm
Earphone jack (minijack) for 8-ohm earphone
Headphones jack (stereo binaural type jack) for 8-ohm impedance headphones
Power requirements:
220/240 V ac adjustable, 50/60 Hz
9 V dc;6x batteries Iec designation R20 (size D);
12 V car battery with optional Sony Car Battery Cord DCC-130
Power consumption: 9 W ac
Dimensions: 453x184x227 mm
Weight: 5.9 kg
| Running though it's abilities 12.15.2012 2:00pm
EST |
|

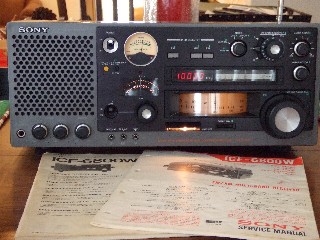

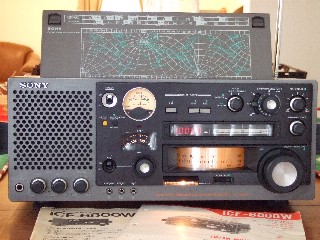

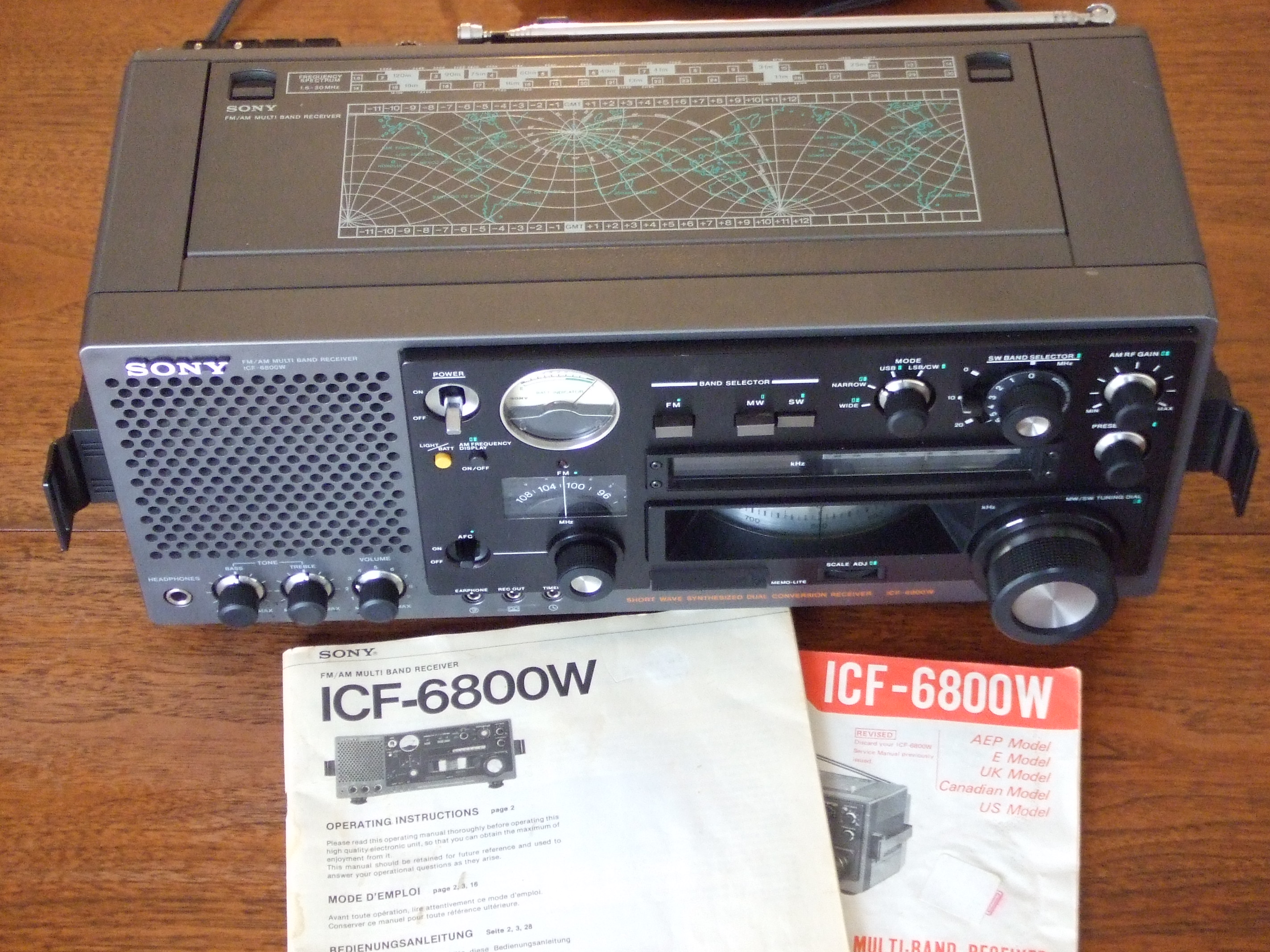

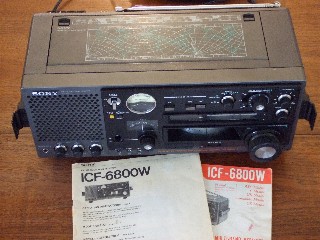

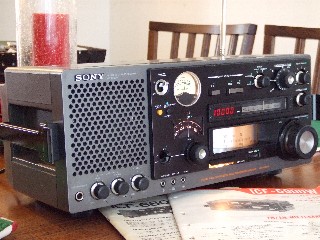

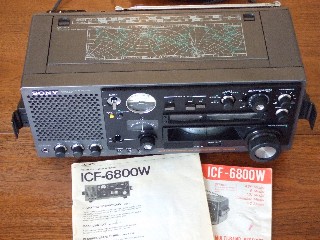

| Click on photo's below for a larger copy | |
 |
 |
 |
 |
 |
 |
 |
|
